Du Bois Challenge

A recreation of a Du Bois bar chart for #TidyTuesday week of Feb 16, 2021

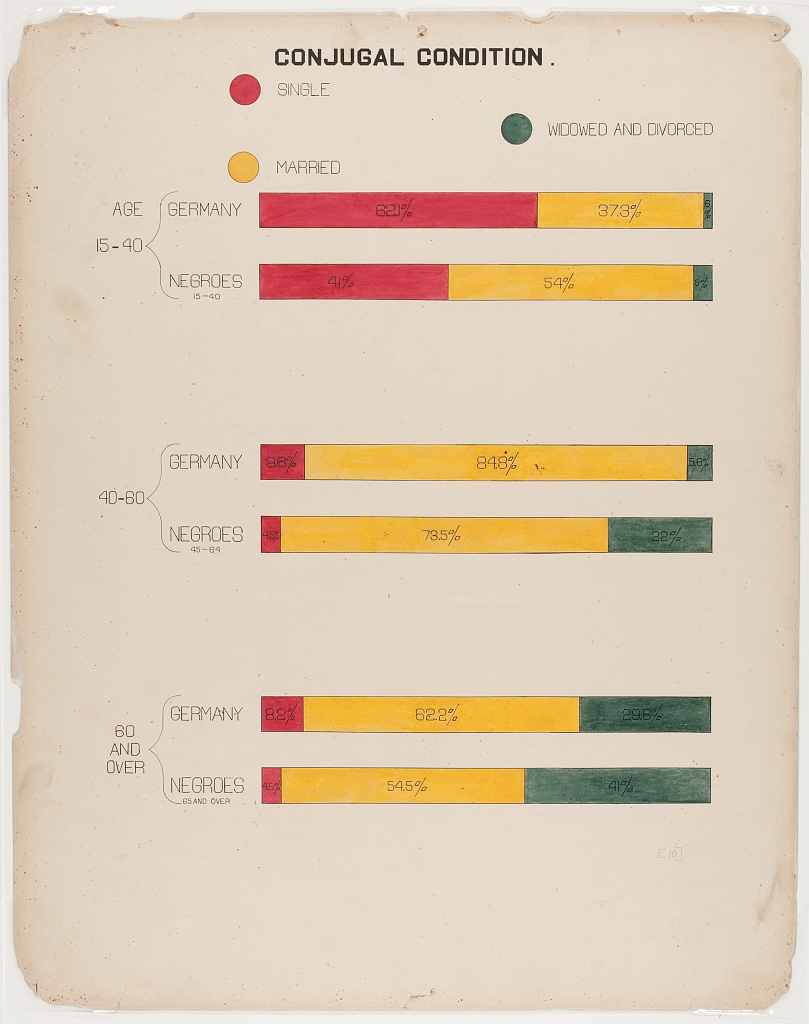

Original Image

The original chart was prepared by Du Bois for the Negro Exhibit of the American Section at the Paris Exposition Universelle in 1900 to show the economic and social progress of African Americans since emancipation. This particular graph shows the marital status of African Americans compared to Germans, by age group.

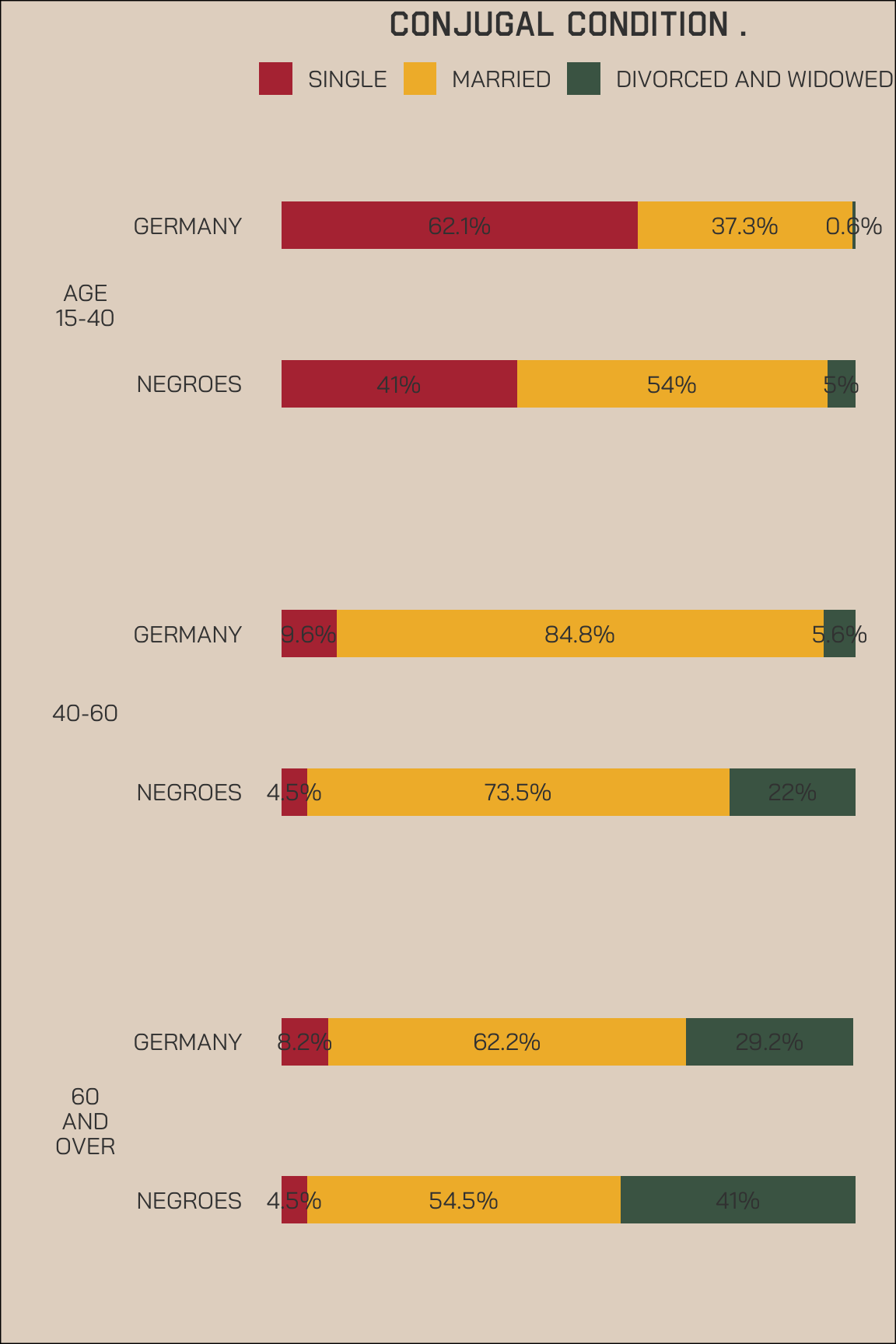

Replication

We can replicate the graph in ggplot2 using a facetted barplot with custom colors and fonts. While this isn’t a perfect recreation, it’s true to the style of the original. Many thanks to the folks at TidyTuesday as well as Anthony Starks, Allen Hillery, and Sekou Tyler for putting the challenge together (including creating a Du Bois style guide)!

Code

knitr::opts_chunk$set(echo = FALSE, fig.path = "plots/", fig.width = 8, fig.height =5)
library(tidyverse)

#tuesdata <- tidytuesdayR::tt_load('2021-02-16')
conjugal <- readr::read_csv('https://raw.githubusercontent.com/rfordatascience/tidytuesday/master/data/2021/2021-02-16/conjugal.csv')
knitr::include_graphics("original-graph.png")
dubois_color = c("#4a6554", "#f1b834", "#b53541")
bg_color = "#e4d7ca"

conjugal %>%
  pivot_longer(-c(Population, Age), names_to = "status", values_to = "percent") %>%
  mutate(
    Population = fct_rev(toupper(Population)),
    status = toupper(status),
    Age = fct_inorder(case_when(
      Age == "15-40" ~ "AGE\n15-40",
      Age == "40-60" ~ Age,
      TRUE ~ "60\nAND\nOVER"
    ))
  ) %>%
  ggplot(., aes(y = Population, x = percent, fill = status)) +
  geom_col(width = .3) +
  geom_text(aes(label = paste0(percent, "%")), position = position_stack(vjust = .5), size = 4, family = "Bai Jamjuree", color = "gray25") +
  facet_grid(rows = vars(Age), switch = "y") +
  labs(
    title = "CONJUGAL CONDITION .",
    y = " ",
    x = " ",
    fill = ""
  ) +
  scale_fill_manual(values = dubois_color,
                    guide = guide_legend(override.aes = list(shape = 21),
                                         reverse = TRUE)) +
  theme_minimal() +
  theme(
    legend.position = "top",
    panel.background = element_rect(fill = bg_color, color = bg_color),
    plot.background = element_rect(fill = bg_color),
    panel.grid = element_blank(),
    panel.border = element_blank(),
    strip.text.y.left = element_text(angle = 0, color = "gray25"),
    axis.text.y = element_text(color = "gray25"),
    axis.text.x = element_blank(),
    strip.placement = "outside",
    text = element_text(family = "Bai Jamjuree", color = "gray25", size = 14),
    plot.title = element_text(size = 16, face = "bold", hjust = .5, family = "Airborne II Pilot"),
    panel.spacing = unit(2, "lines")
  )
